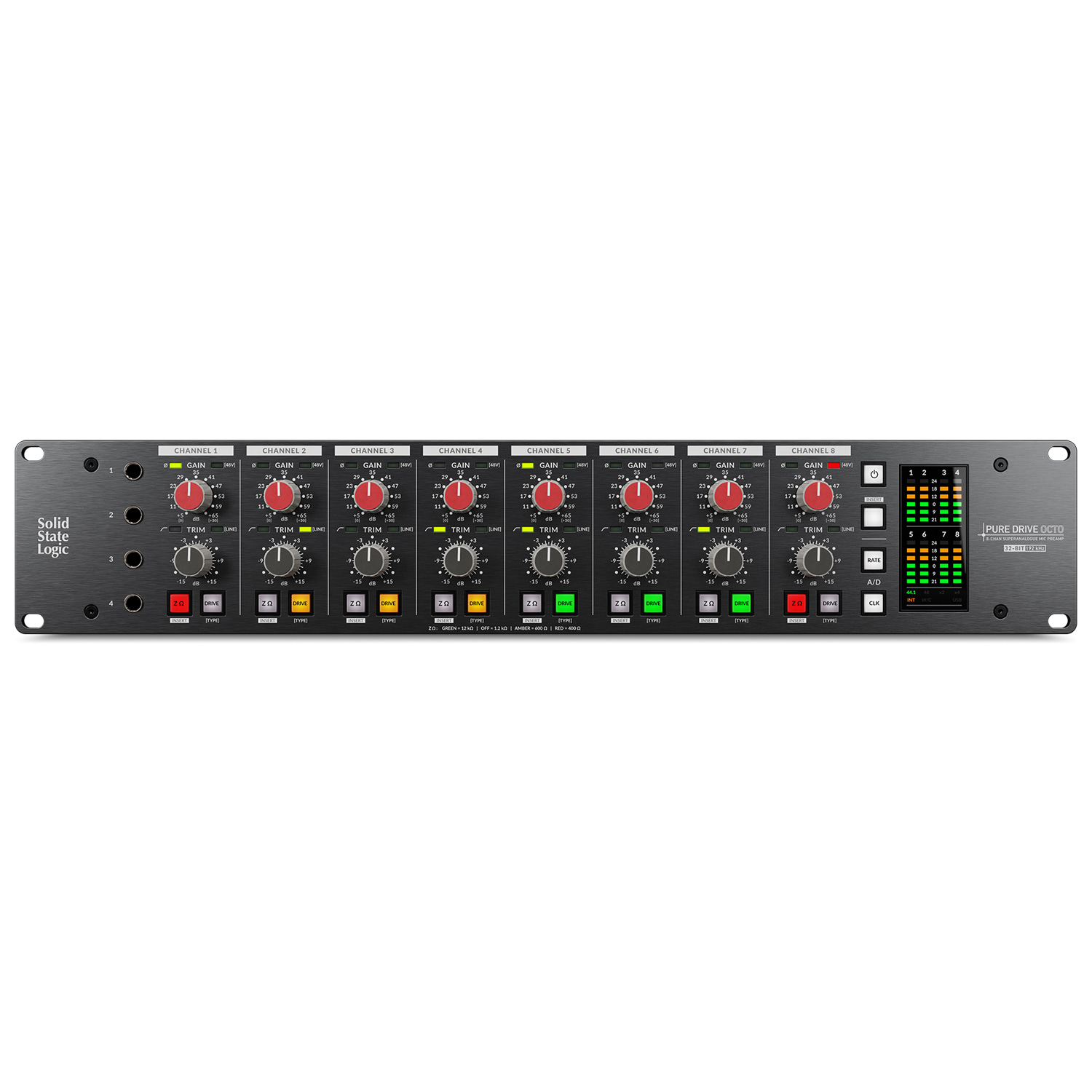

Solid State Logic Pure Drive OCTO Pre

The PURE DRIVE OCTO harnesses Solid State Logic’s renowned SuperAnalogue PureDrive™ microphone preamp technology, originally featured in the ORIGIN console. This advanced unit introduces a new DRIVE mode, comprehensive connectivity, and state-of-the-art digital conversion, all within a compact 8-channel 2U rackmount format. The ORIGIN recording console, a contemporary-classic from SSL, first introduced the groundbreaking PureDrive™ microphone preamplifier. This innovative preamp maintains the clarity and punch of SSL’s previous designs while also offering the flexibility to switch its character to a warm, harmonically rich, and driven tone that varies with gain.

Manufacturers Website:

SKU: Pure Drive OCTO Pre Category: Mic Preamp

Fatures

8 channel high-performance PureDrive™ mic preamps
Stepped Gain control up to +65 dB Gain
31-step Trim control, with precise 1 dB increments – overdrive the signal with the Gain control and then reduce to a suitable level using Trim.
3 modes for each preamp – Clean, Classic Drive and Asymmetric Drive
Mic/Line Input Switching
- Mic via XLR
- Line via choice of TRS Jack or dedicated D-Sub connectivity
4 x front panel Hi-Z/DI Instrument unbalanced inputs with automatic input detection
4 mic preamp input impedance options – explore new tonal possibilities from your dynamic and ribbon microphones
Balanced analogue outputs/insert sends for external processing
+24 dBu professional line level insert returns/ADC inputs

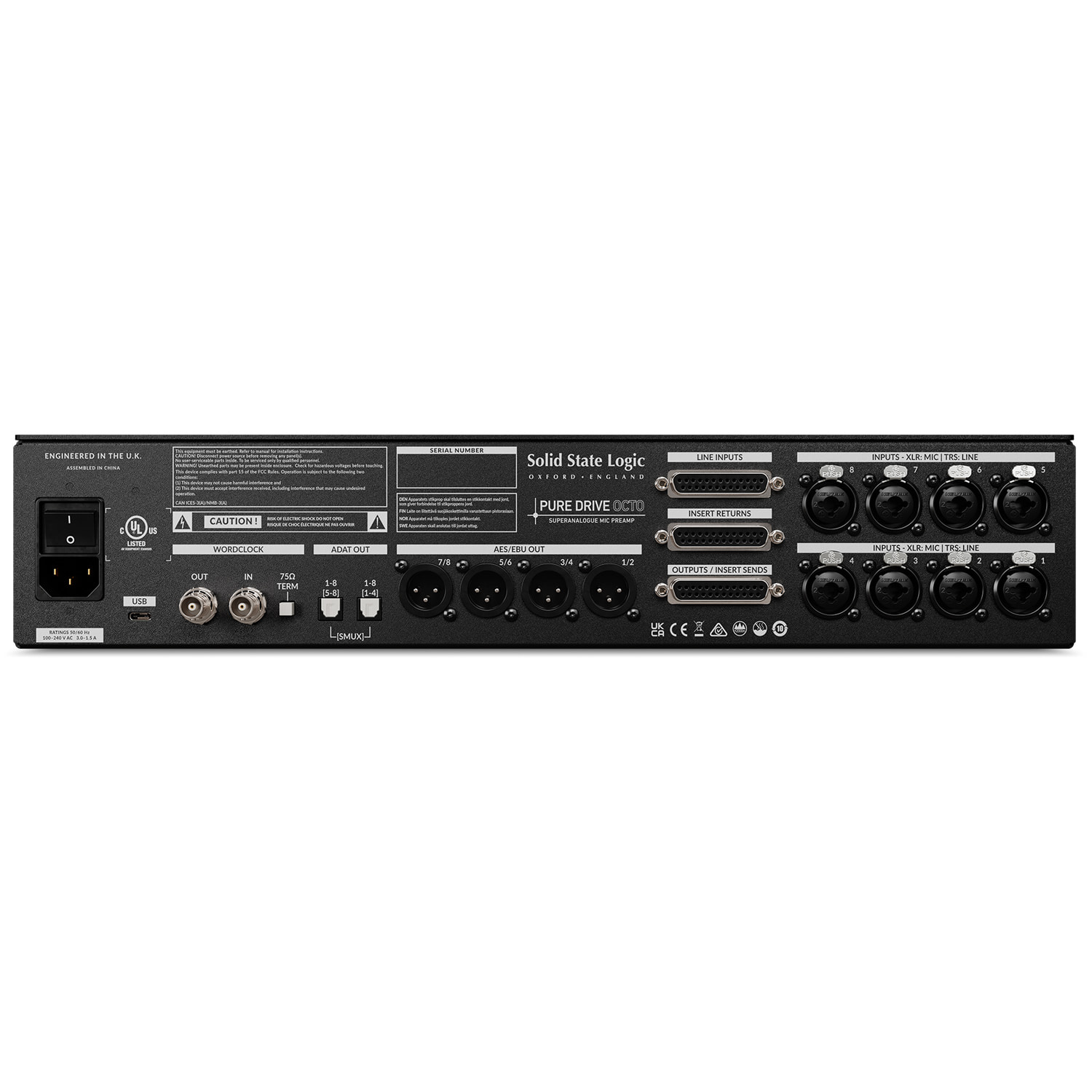

Analogue to digital connectivity via ADAT, AES and USB
Ability to switch ADAT and AES connections to source audio from DAW outputs (USB) instead of the A/D converter
USB soundcard mode: OCTO – 8 in / 24 out (@44.1/48 kHz) ; 8 x analogue / 8 AES + 16 ADAT outs
Stepped pots and digitally controlled analogue electronics for precision, stereo matching and ease of recall
Up to 192 kHz and 32-bit conversion, professional I/O levels (+24 dBu = 0 dBFS).
Auto-ranging Wordclock In and Out
