Home Mic Preamp Grace Design m108 8 channel mic preamp / ADC
Vertigo Sound VSE-2 Gyrator EQ
Back to products
Grace Design m801 mk2 8 channel preamp
Grace Design

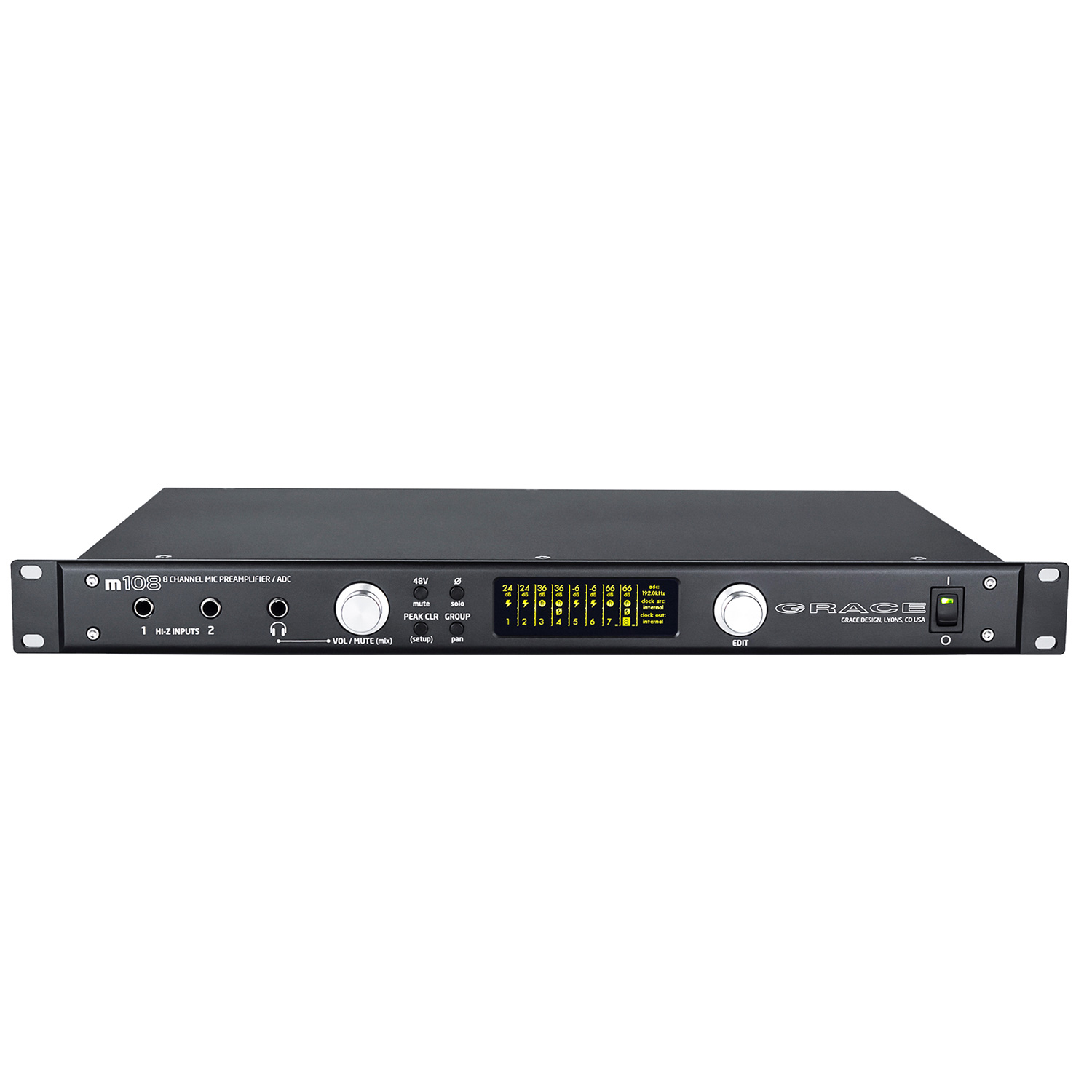

Grace Design m108 8 channel mic preamp / ADC

With eight channels of its transparent, musical mic pre-amplification, state of the art A/D conversion, multiple digital output formats, and flexible local or remote controlled operation, the m108 is a vital addition to any modern audio production environment. The transformer-less, trans-impedance mic preamp design is unmatched in its ability to effortlessly resolve complex sonic waveforms, resulting in recordings of amazing clarity and depth. And an asynchronous mode USB interface provides the best possible jitter performance when connected to a computer.

Manufacturers Website:

Enquiry Form
Compare
SKU: Grace Design m108 Category: Mic Preamp
Share:
  • Description
  • Additional information
Description

Key features

  • 8 channels of balanced analog preamp outputs
  • 8 channels of transparent, musical mic preamplifier
  • Wide gain range: -6 to 69dB
  • Ribbon mic mode
  • 8 channels of 192kHz ADC outputs via AES, ADAT (4ch SMUX) and USB Class 2
  • External Word clock in and out
  • Reference DAC and headphone amplifier for low-latency monitoring of channel pairs or USB playback from a computer
  • Channel 1 & 2 HI-Z inputs on front panel
  • High contrast, wide viewing angle OLED display for all system parameters and setup menu
  • Combination RS 485/422 serial / MIDI ports for control from existing m802 RCU or Protools™
  • Control App (Win and Mac, coming soon) can control up to 96 channels over Ethernet
  • Simple web browser control built in, works with all modern browsers including iOS and Android
  • RJ45 Ethernet port for network control
  • Expansion slot for optional Audinate / DANTE™ network audio card
Additional information
Brand

Grace Design
